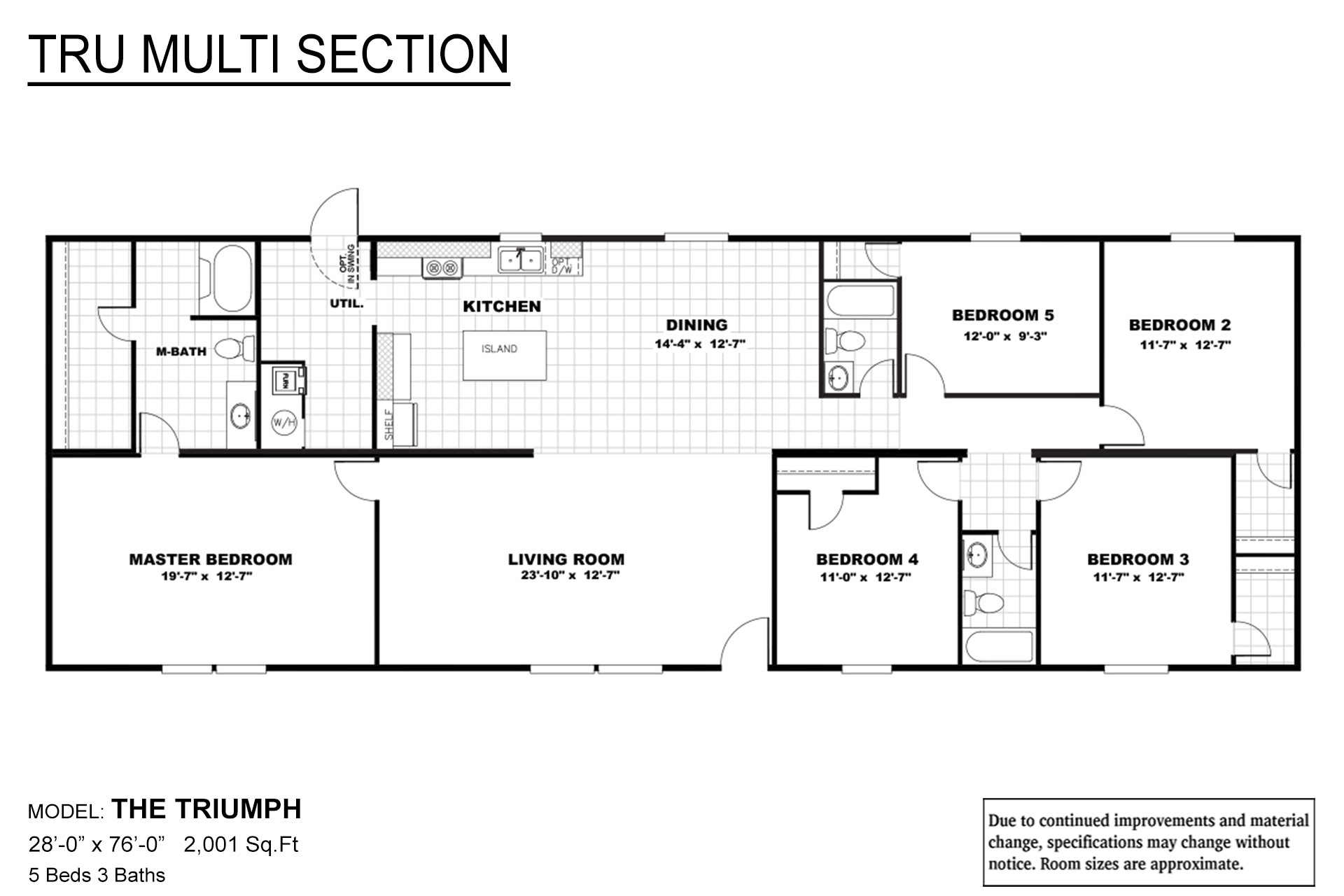

BEDS: 5     BATHS: 3     SQ FT: 2001     W X L: 28′ 0″ x 76′ 0″

SERIAL #:
YEAR BUILT: 2023
PRICE: Call for pricing

Call us at: +1(210)-887-2760

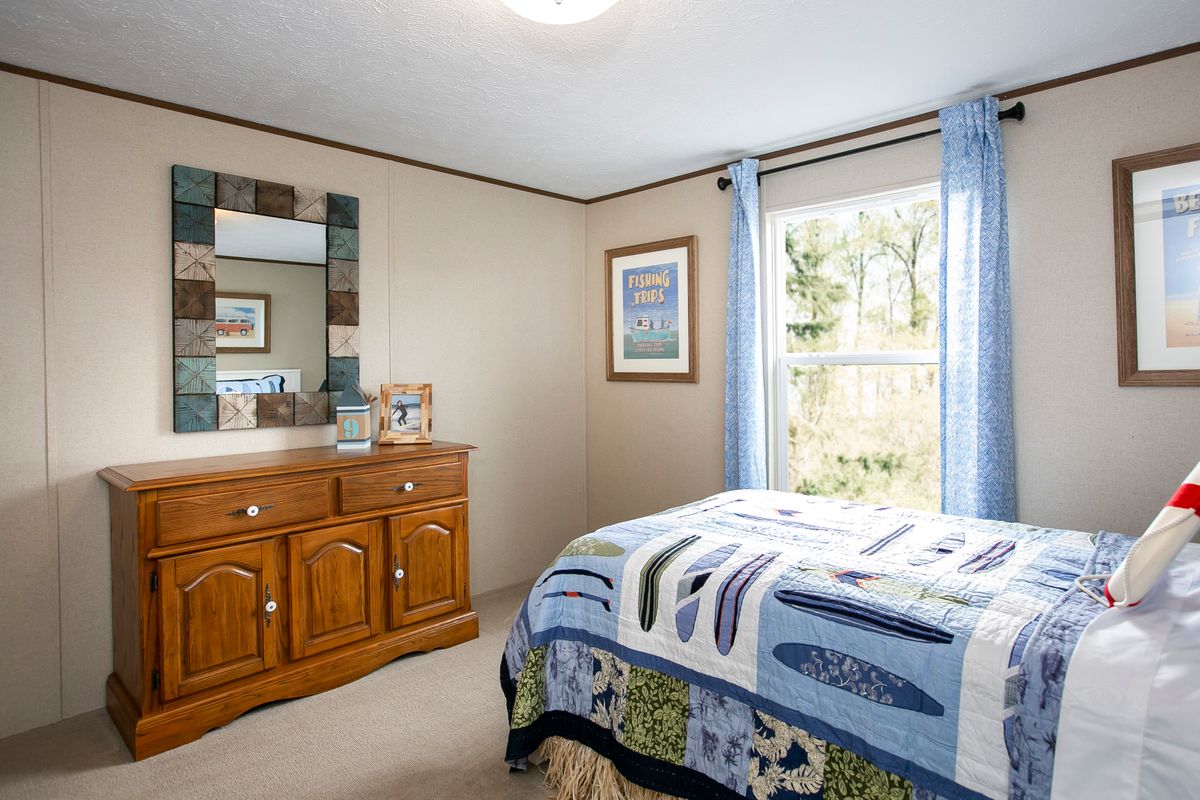

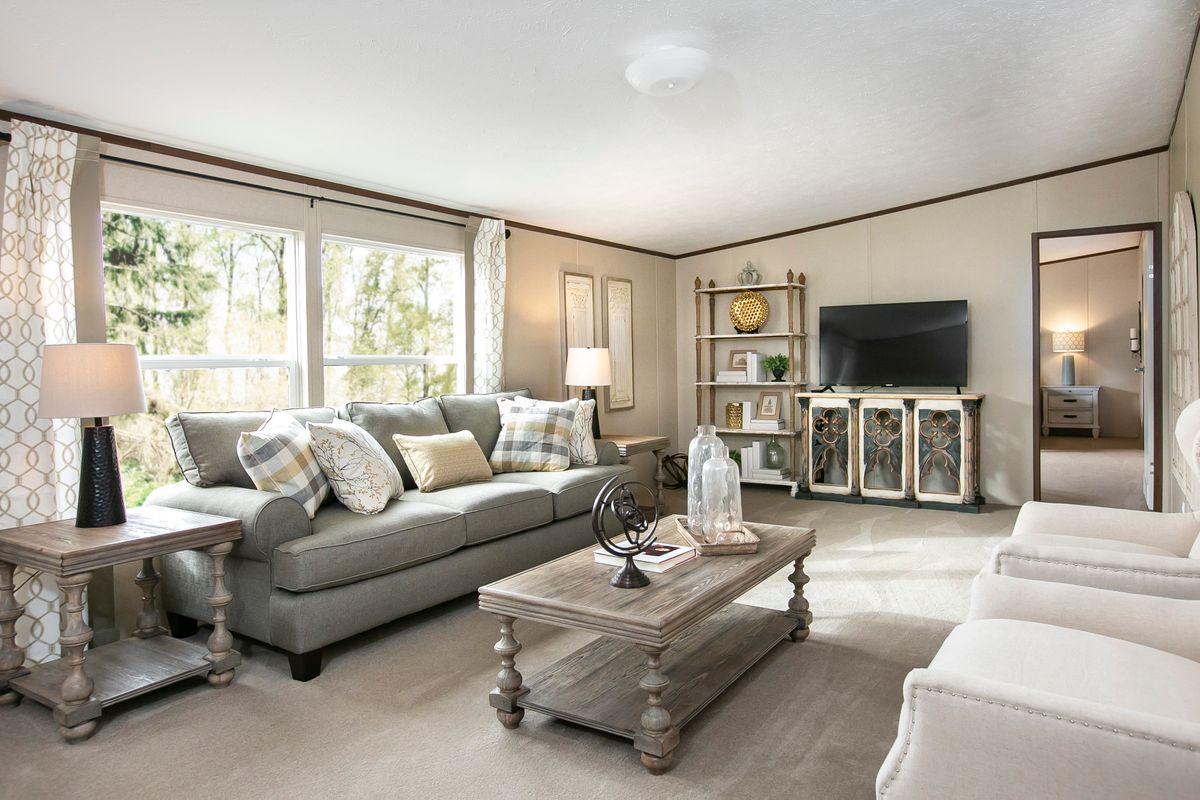

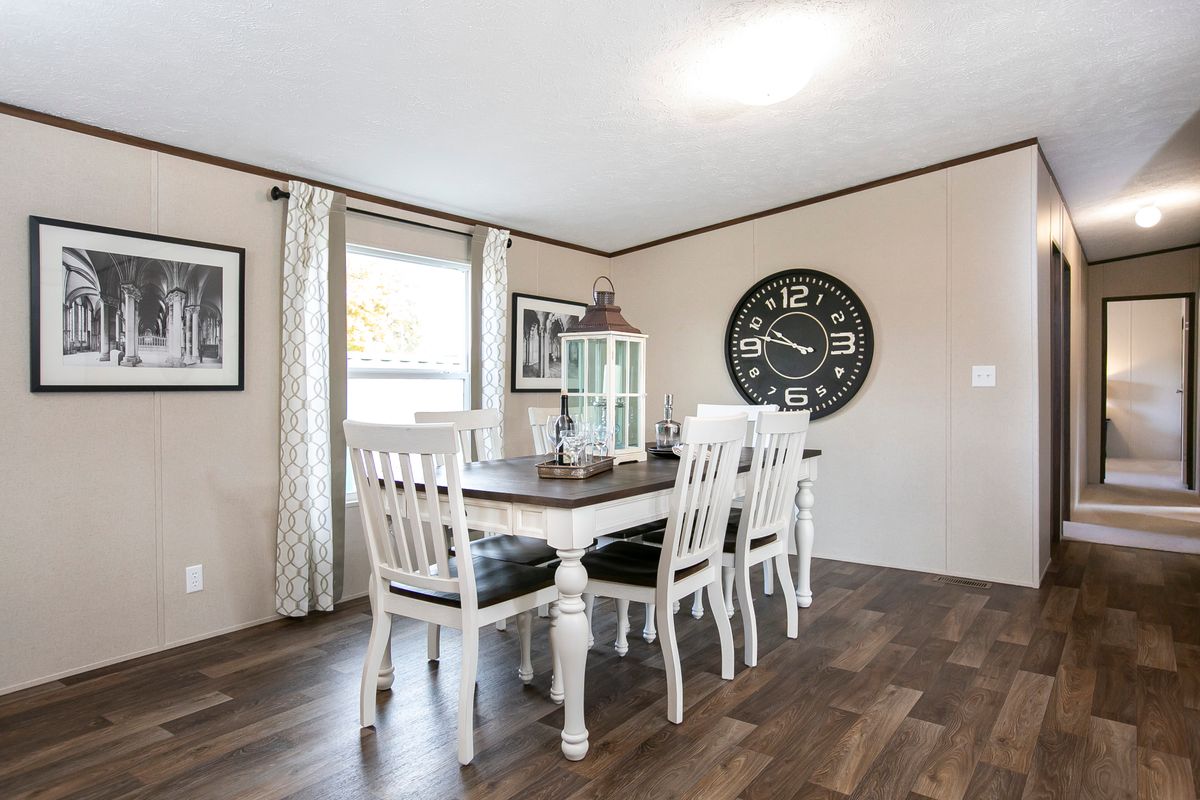

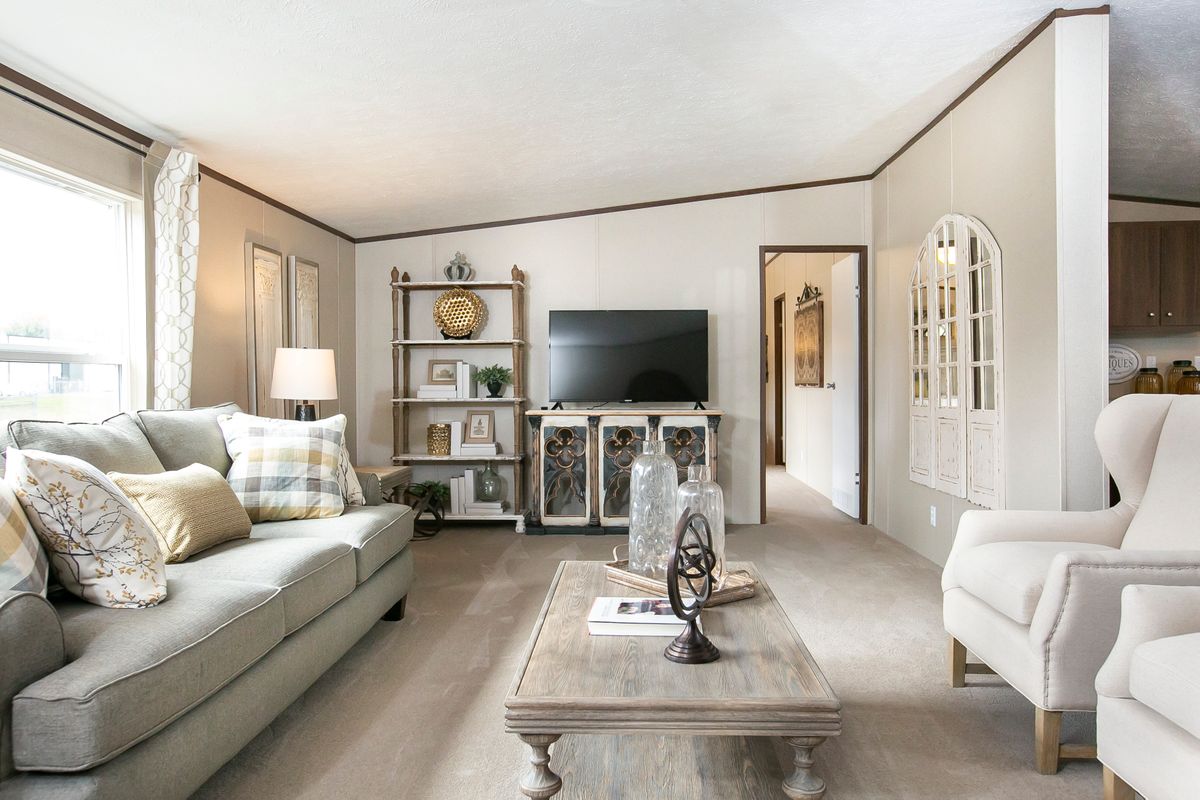

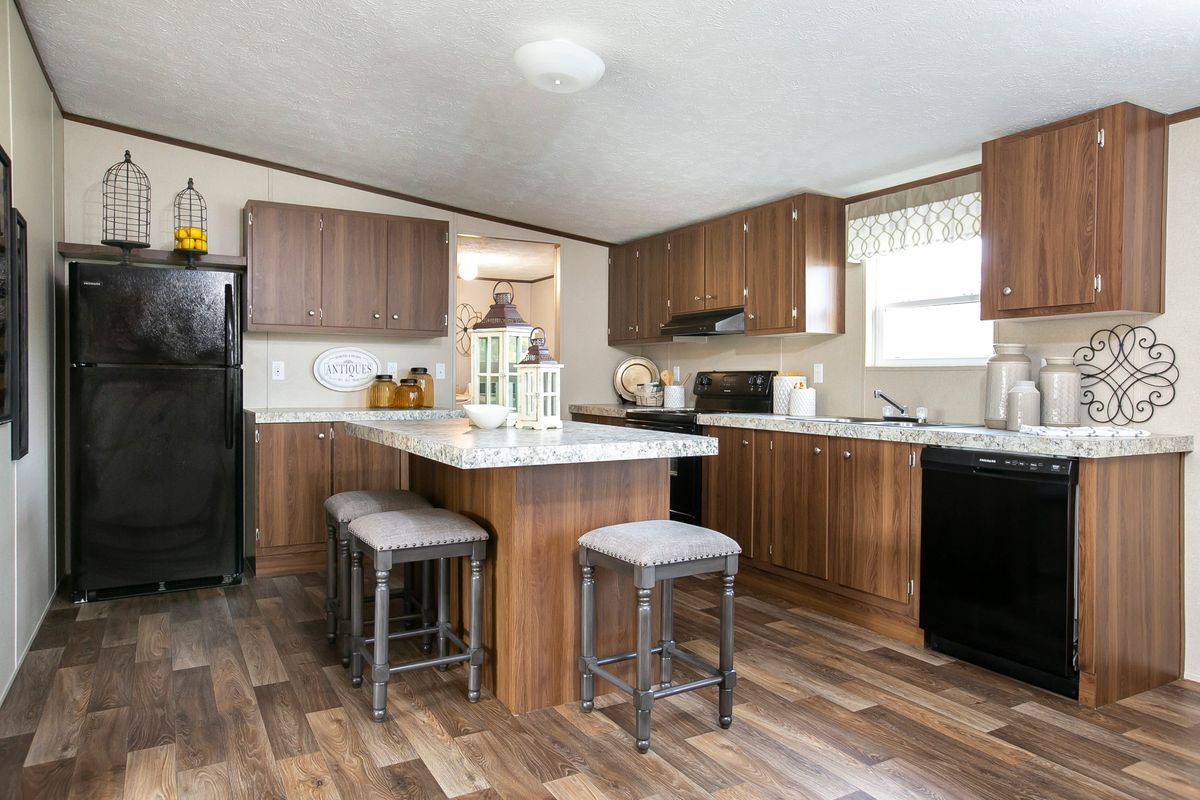

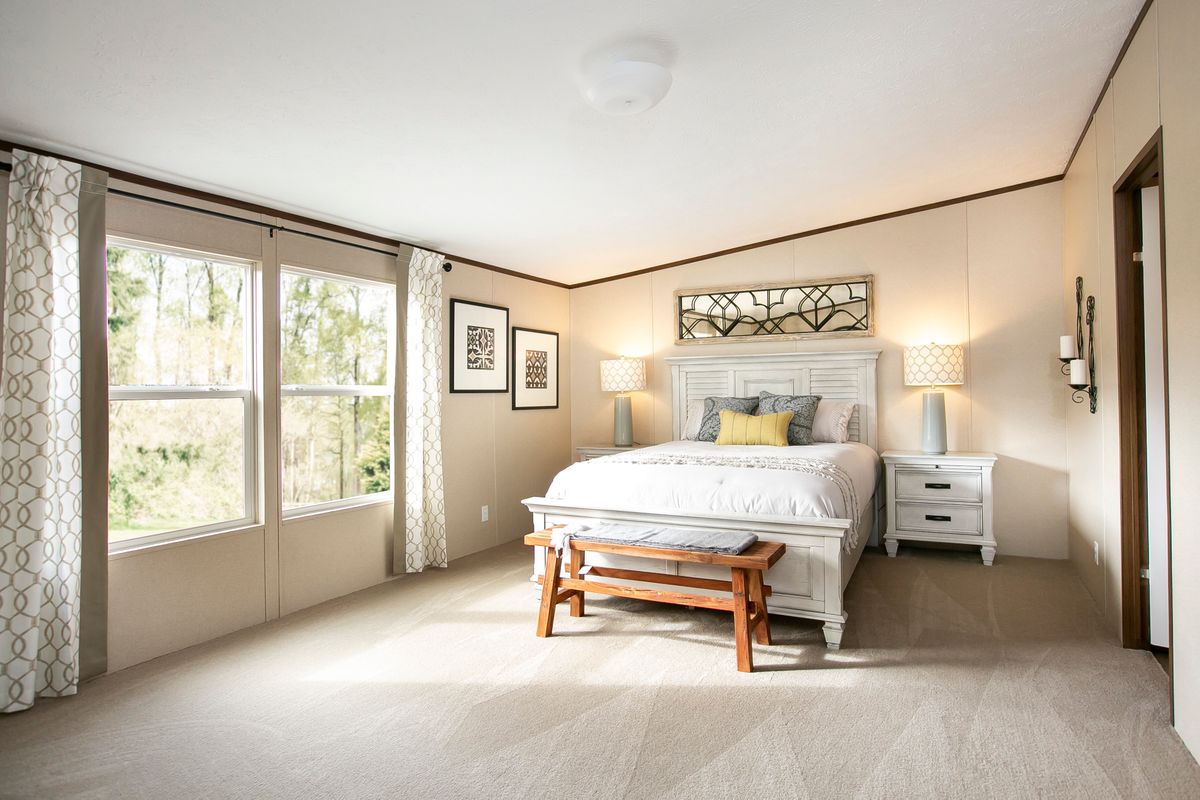

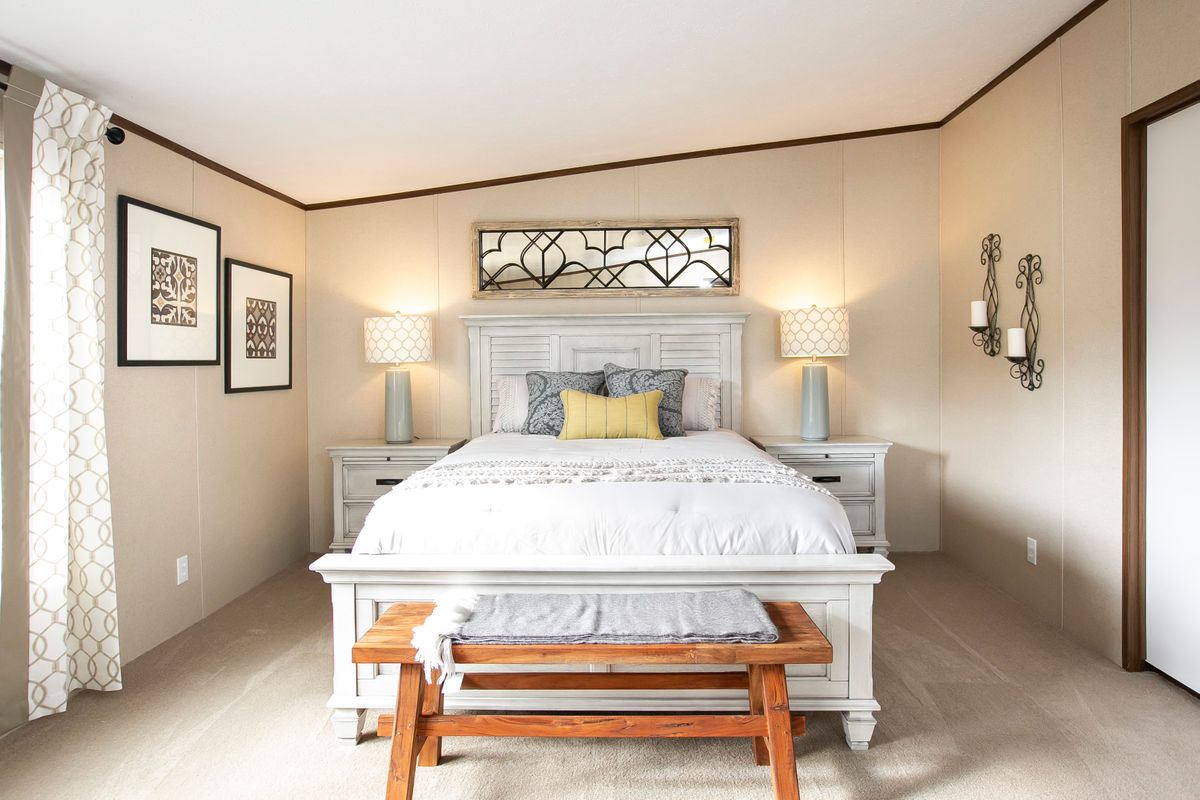

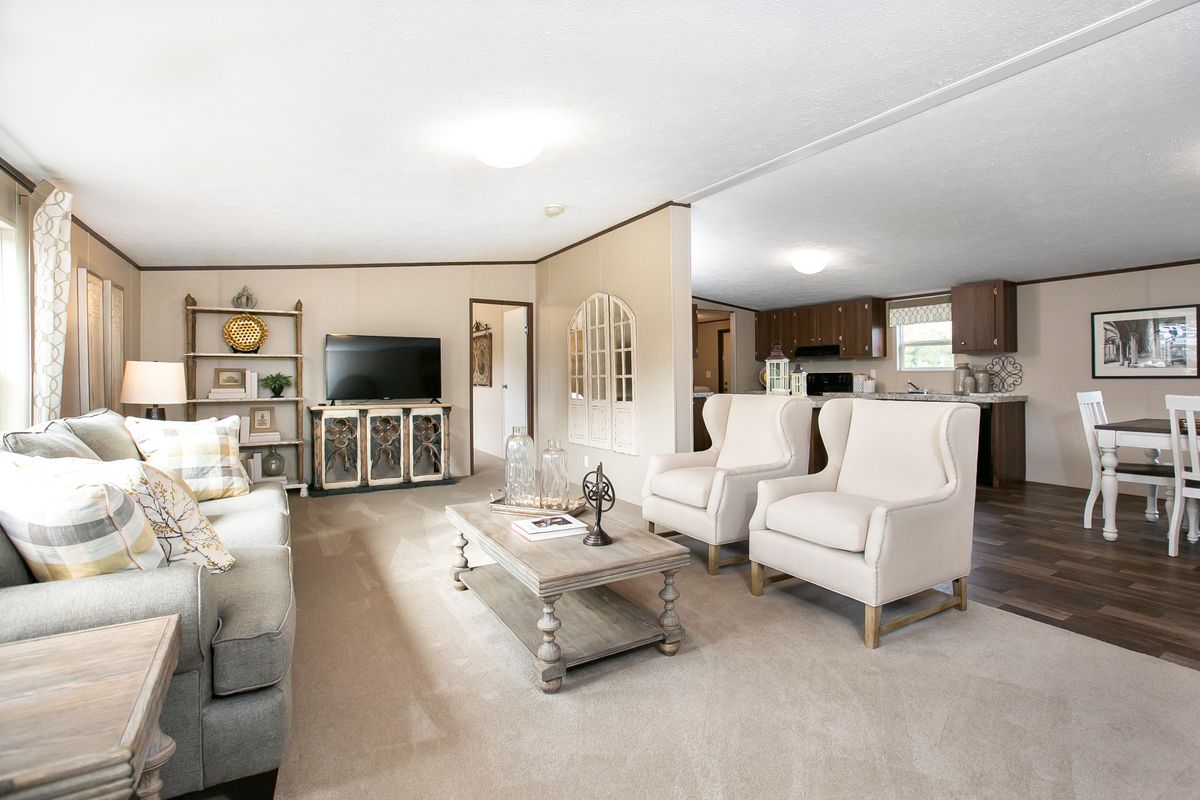

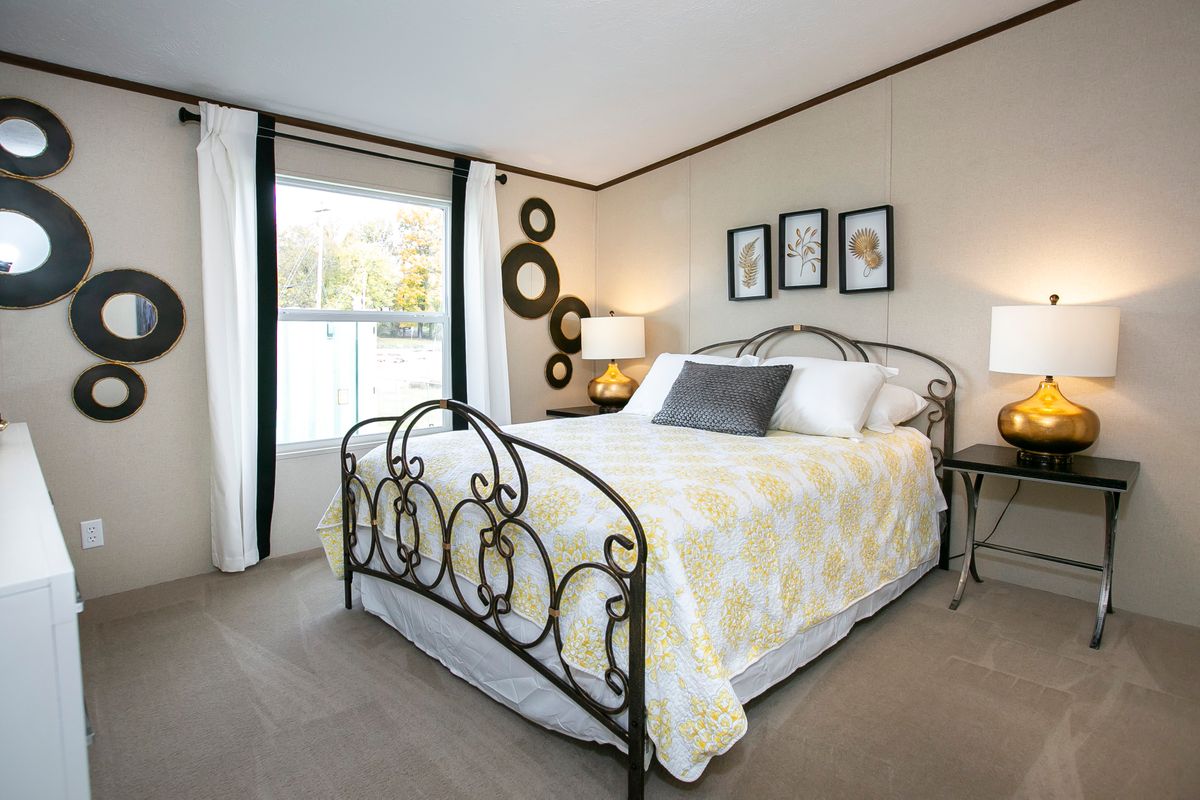

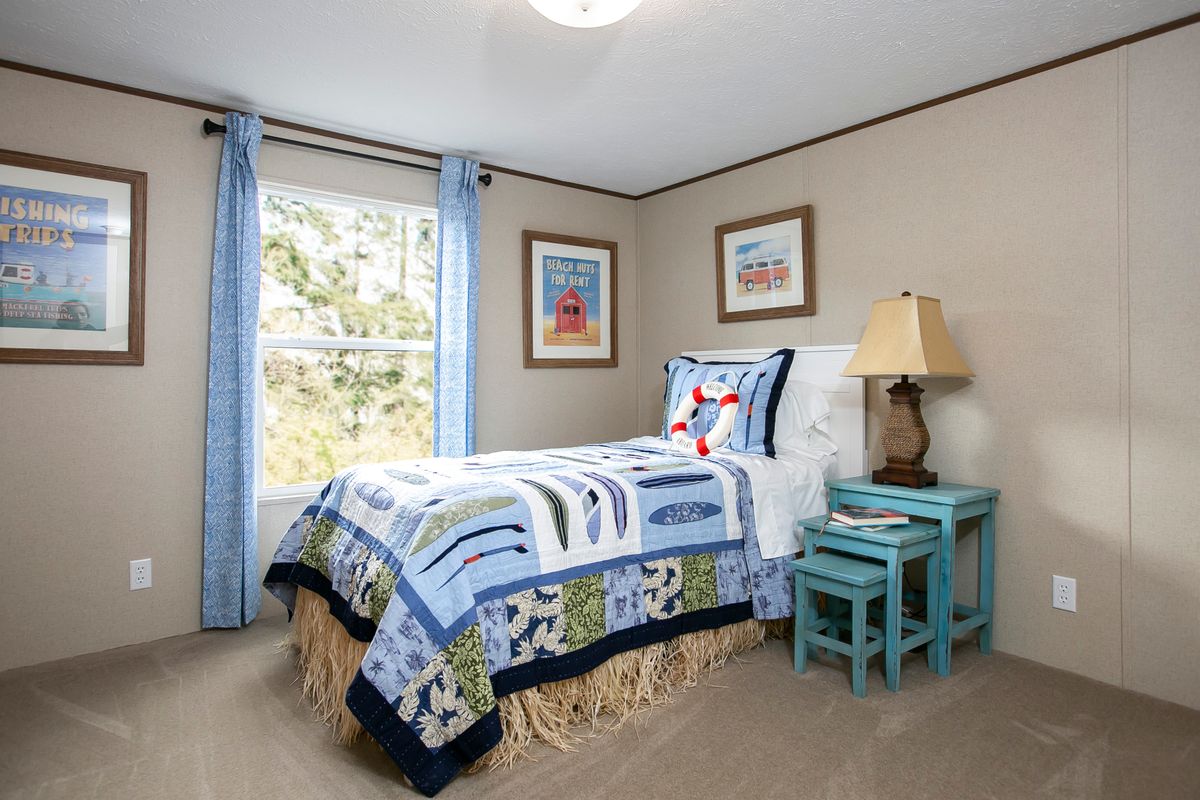

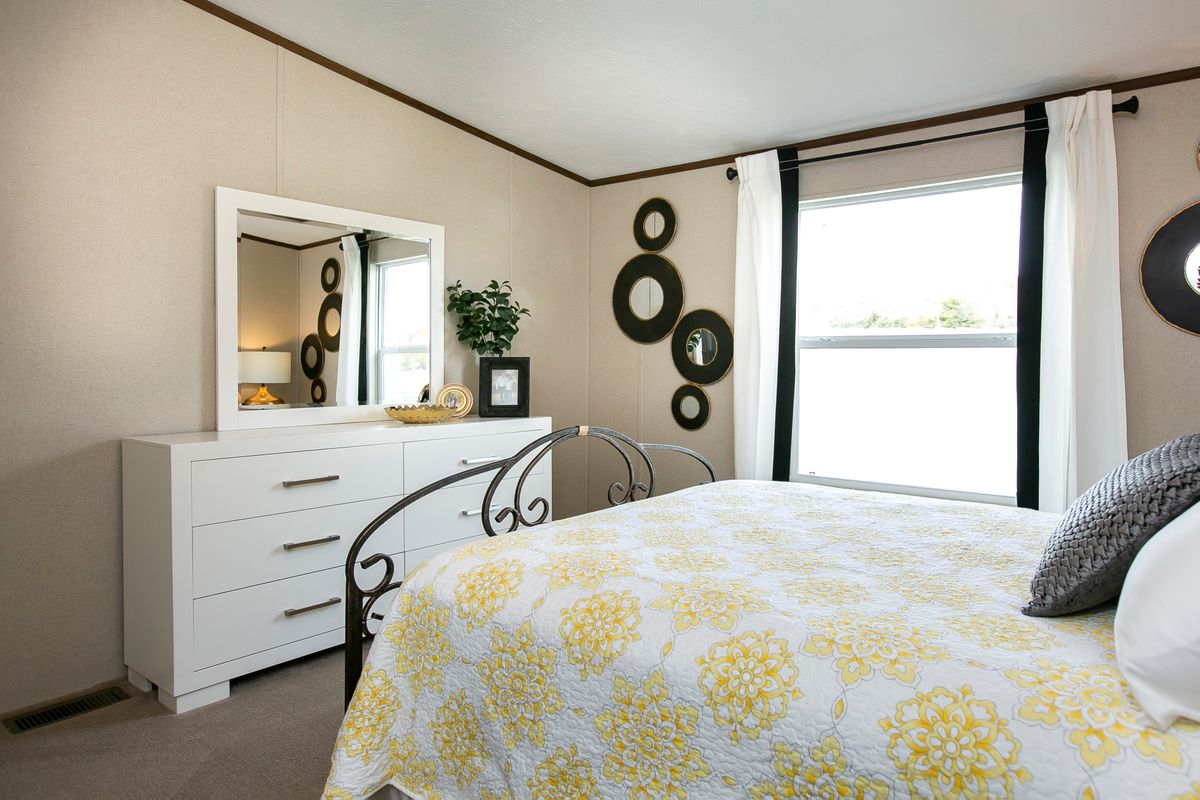

Skillfully designed and affordable estate sized home, ideal for a large family dynamic, features spacious living room open to large well equipped kitchen with center island and adjoining big family sized dining area; extra large king size master bedroom and private roomy bath privately located away from four king-size secondary bedrooms and two additional well located baths; an abundance of storage capacity throughout this expansive home.

manufactured homes, modular homes, mobile homes, oilfield housesworkforce housingTiny homes, New Homes

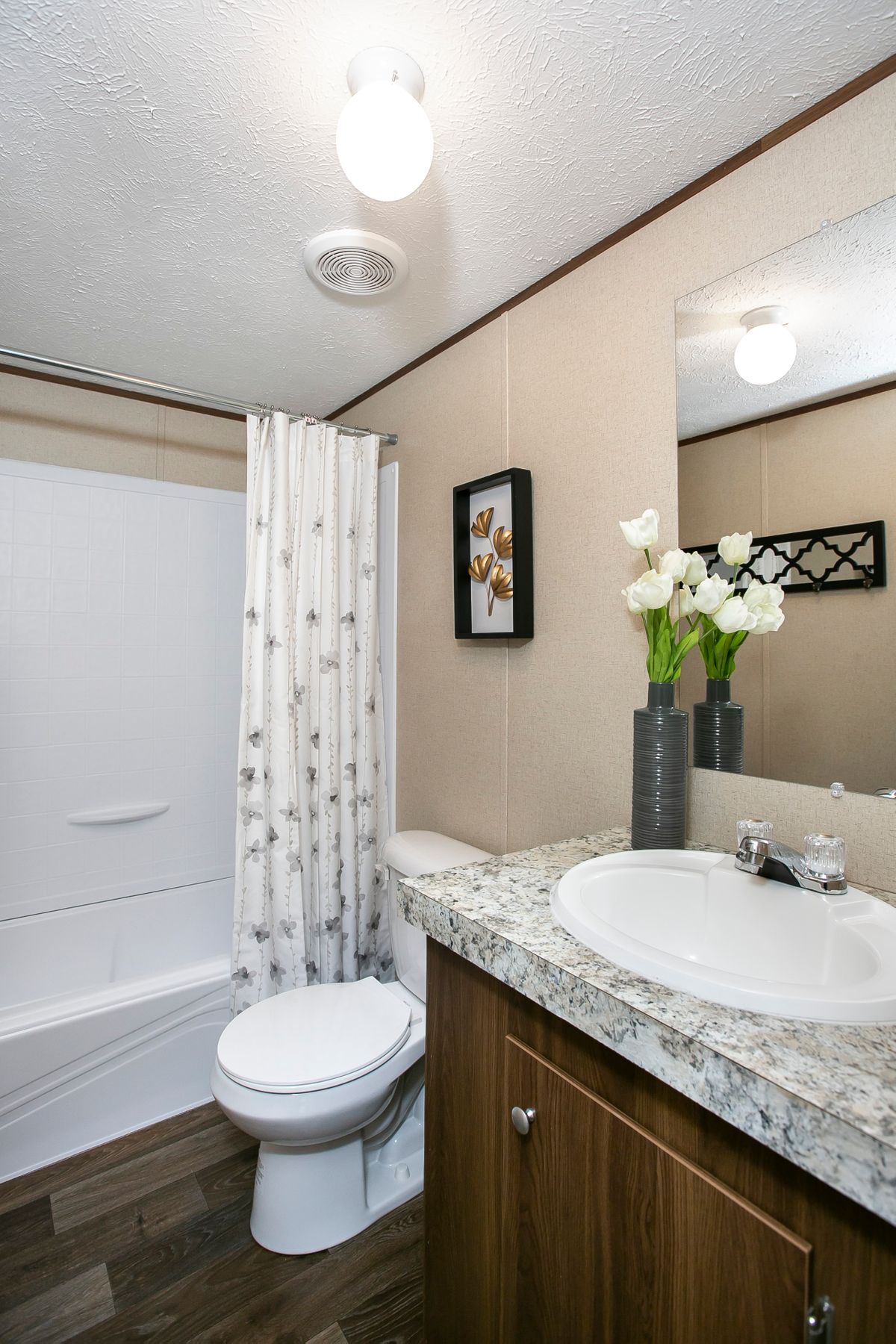

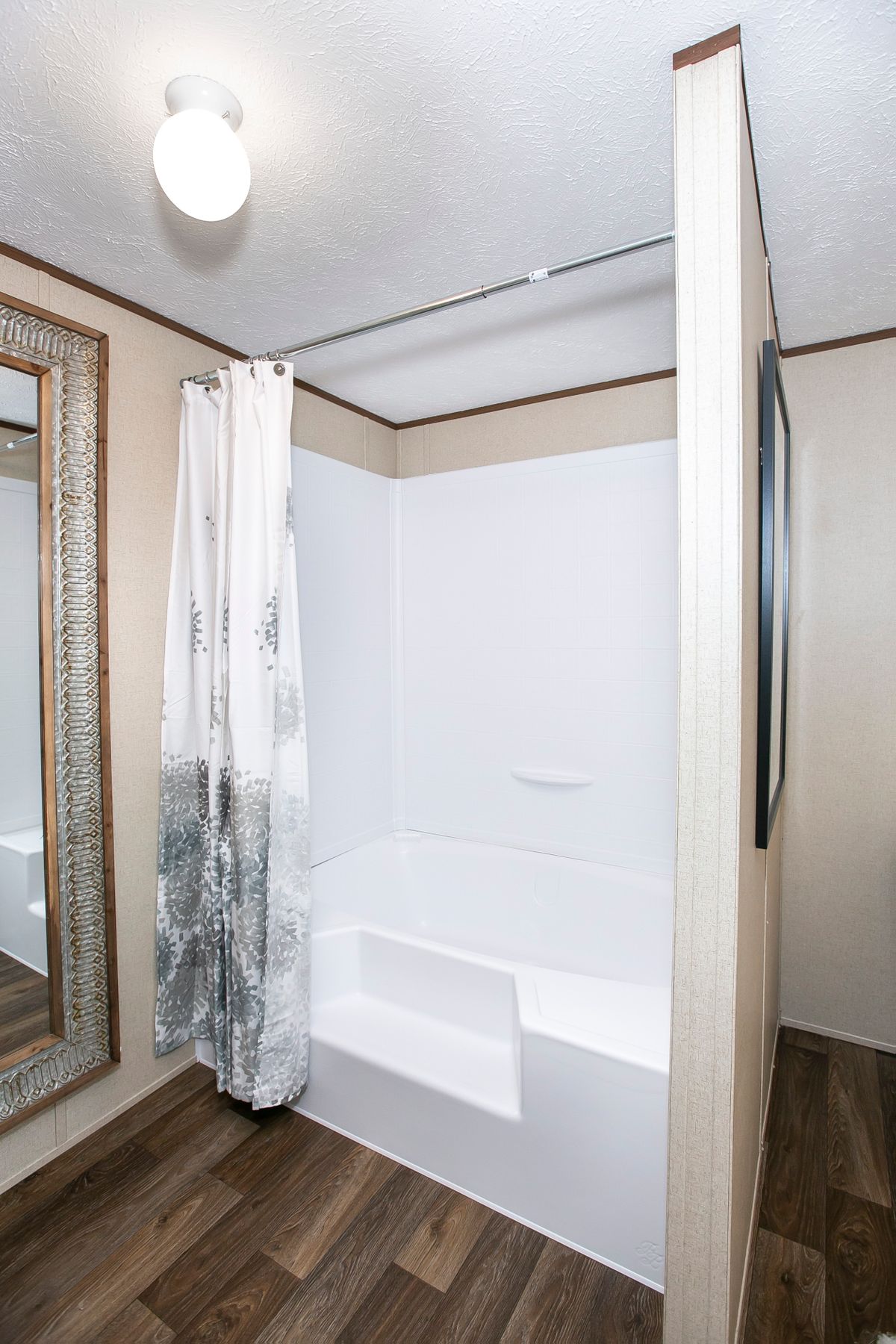

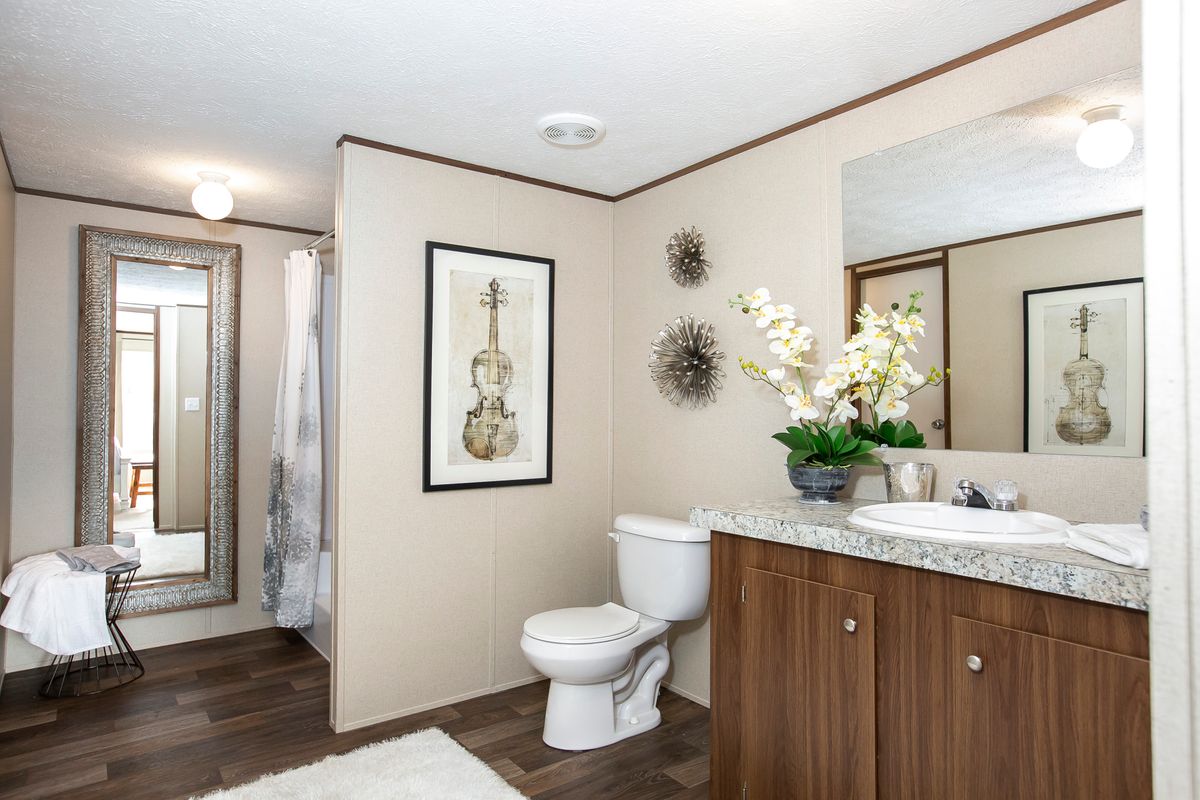

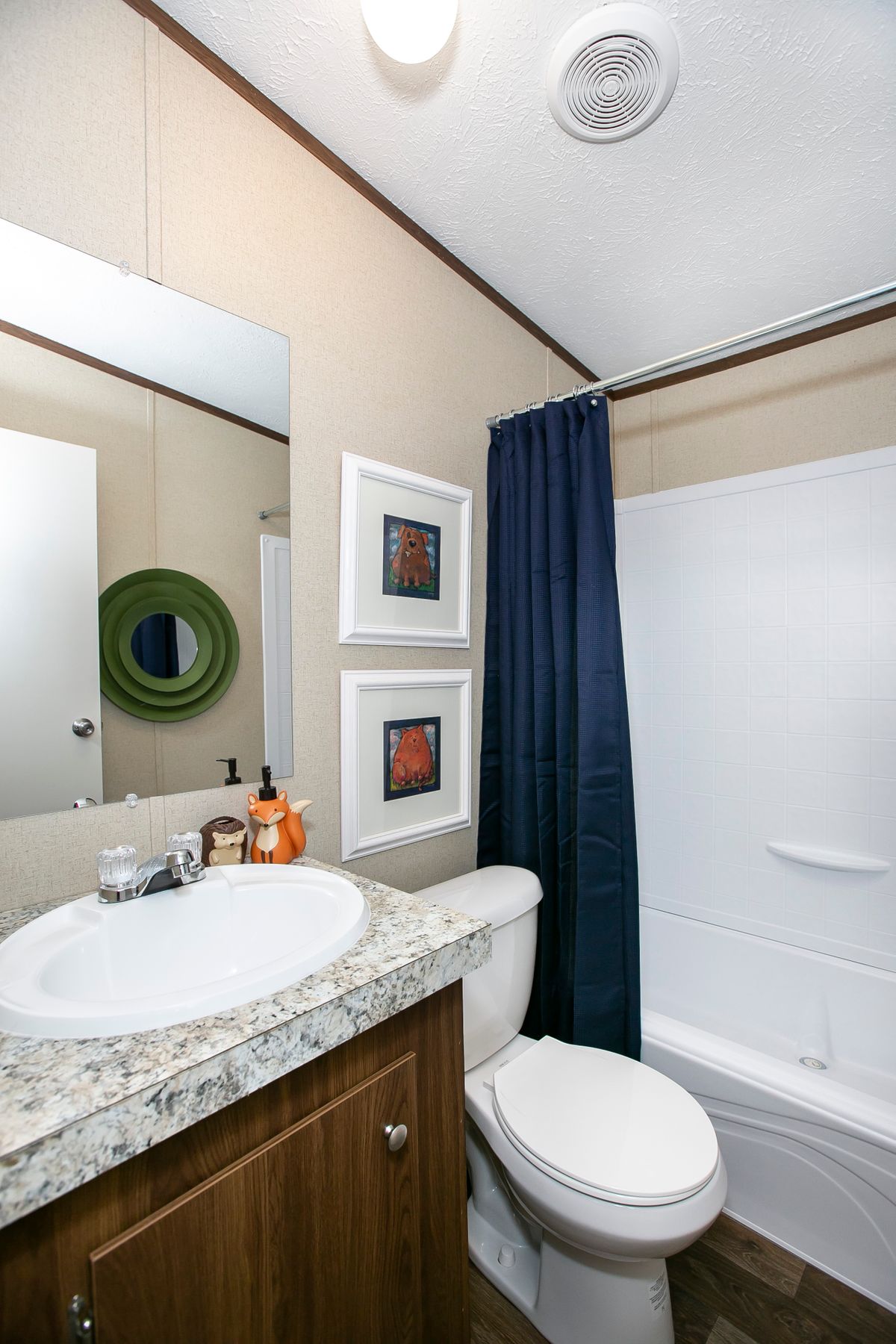

Bathroom Bathtubs: 54” Garden Tub ABS Plastic Tub in master bath / 54” ABS Plastic Tub in guest bath

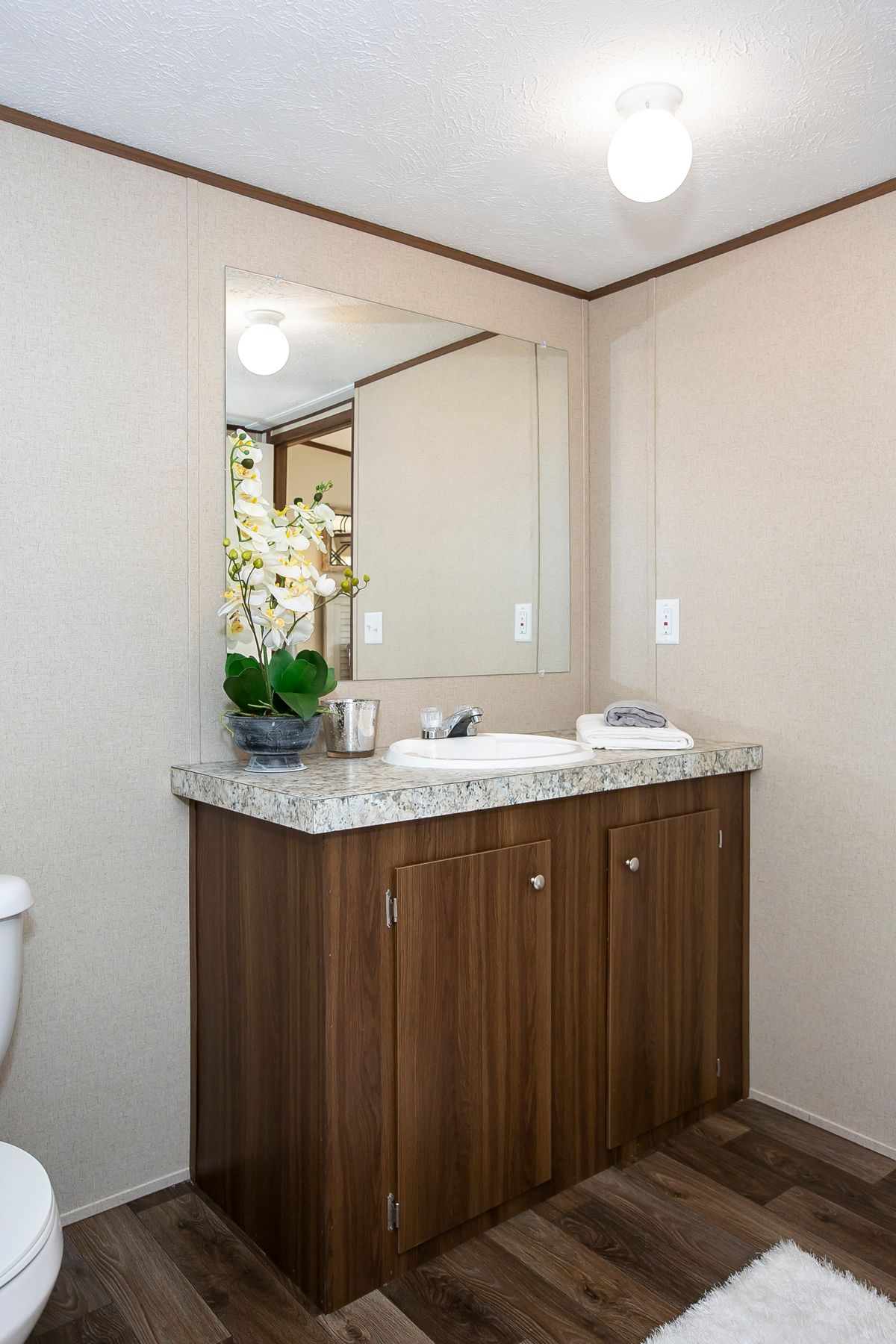

Bathroom Cabinets: MDF
Bathroom Countertops: Formica
Bathroom Faucets: Plastic
Bathroom Flooring: Vinyl
Bathroom Sink: Plastic

Ac Ready: Conduit
Insulation (Ceiling): R-33
Exterior Wall On Center: 16” O.C
Exterior Wall Studs: 2×4
Floor Decking: 19/32” 4×8 OSB T&G
Insulation (Floors): Zone I: R-11 / Zone II: R-14 / Zone III: R-22
Floor Joists: 2×6 / 19.2” o.c.
Interior Wall On Center: 24” O.C
Interior Wall Studs: 2×3
Roof Load: 20 lb. Roof Load Std., 30 psf optional
Roof Truss: 24” o.c. spacing
Side Wall Height: 7’-0”
Insulation (Walls): R11

Front Door: House type w/ storm
Rear Door: Out swing 32” x 76” blank, no storm
Shingles: 20 year
Siding: Vinyl
Window Type: Metal single glaze, size per prints

Carpet Grade: Factory Select
Ceiling Texture: Textured
Interior Doors: Factory Select
Vaulted Ceilings: Vault/Flat Ceiling
Window Type: Metal single glaze, size per prints / Thermal Pane Low E Vinyl Windows (available for Thermal Zone 3 only)

Kitchen Backsplash: None

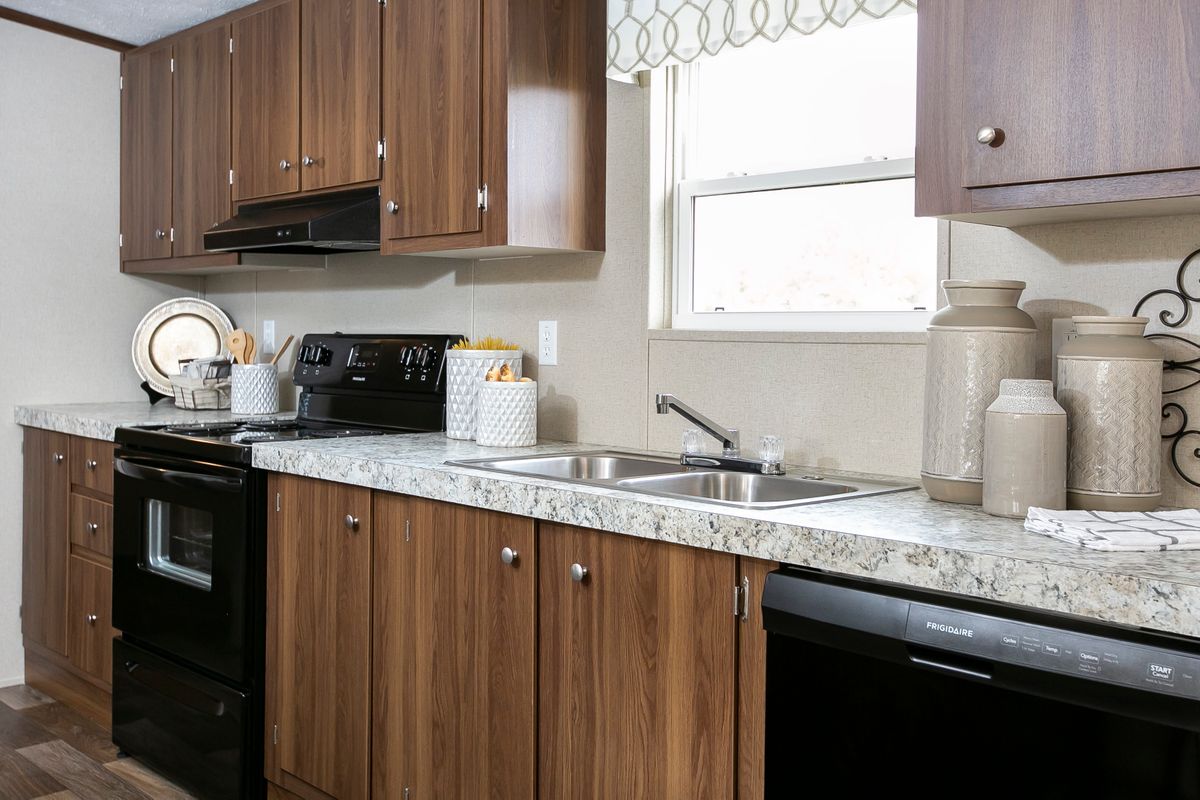

Kitchen Cabinetry: MDF / 24” tall overheads
Kitchen Countertops: Formica
Kitchen Dishwasher: optional
Kitchen Faucets: Plastic
Kitchen Flooring: vinyl

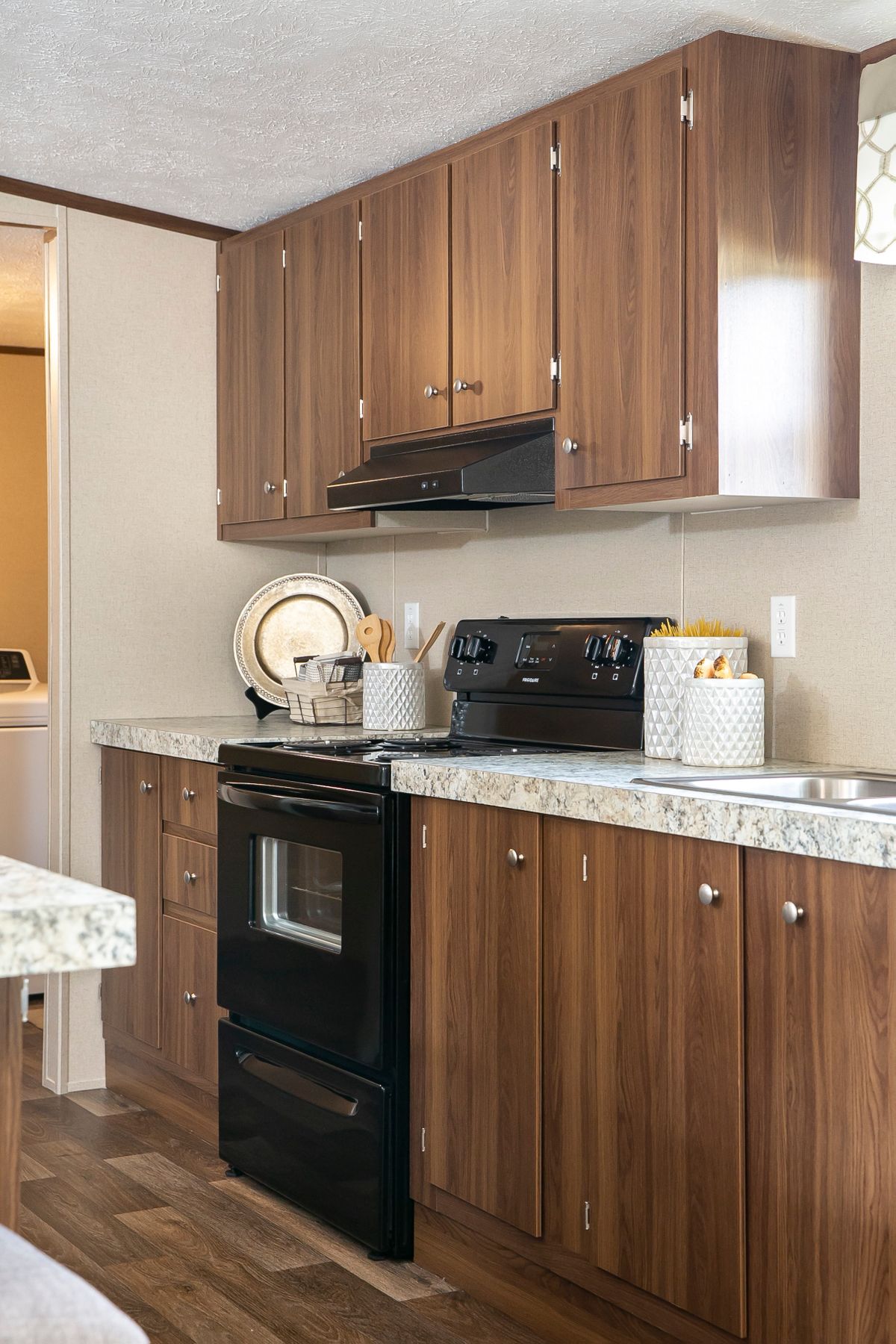

Kitchen Range Hood: 30”, 100 cfm min, vent through sidewall
Kitchen Range Type: Electric
Kitchen Refrigerator: 18 CF
Kitchen Sink: Stainless Steel, dbl bowl

Electrical Service: 200 amp
Furnace: Electric (gas optional)
Thermostat: 8 Wire
Water Heater: 40 gallon electric
