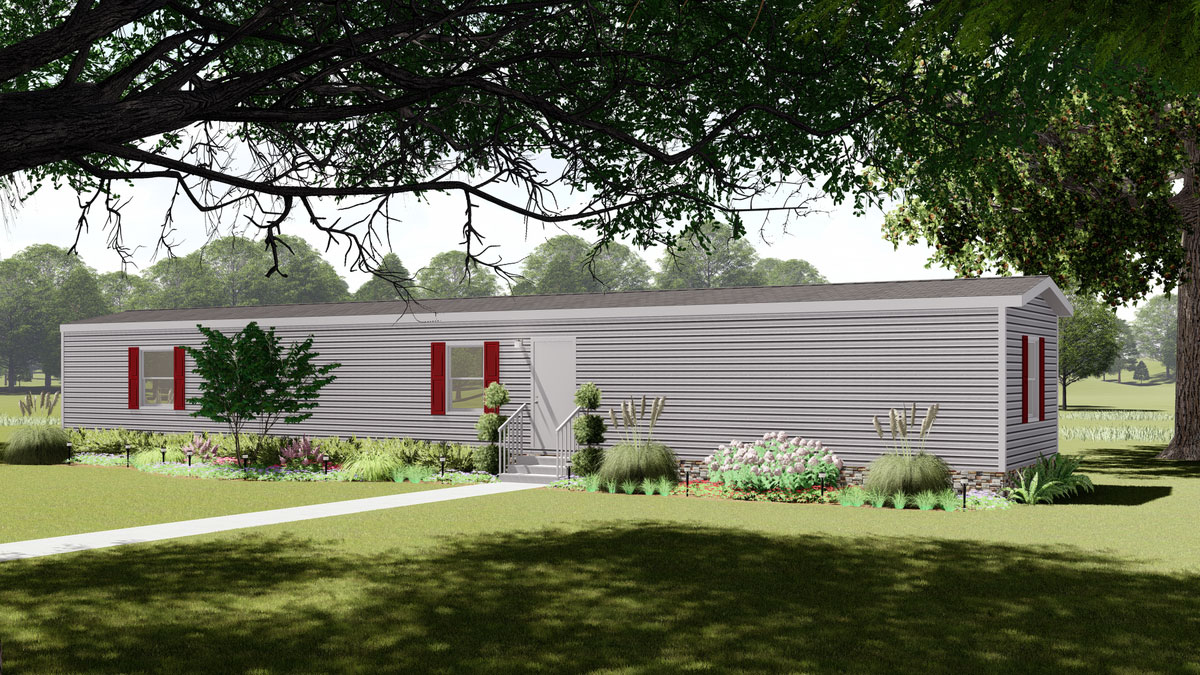

TRU Single Section / Dash

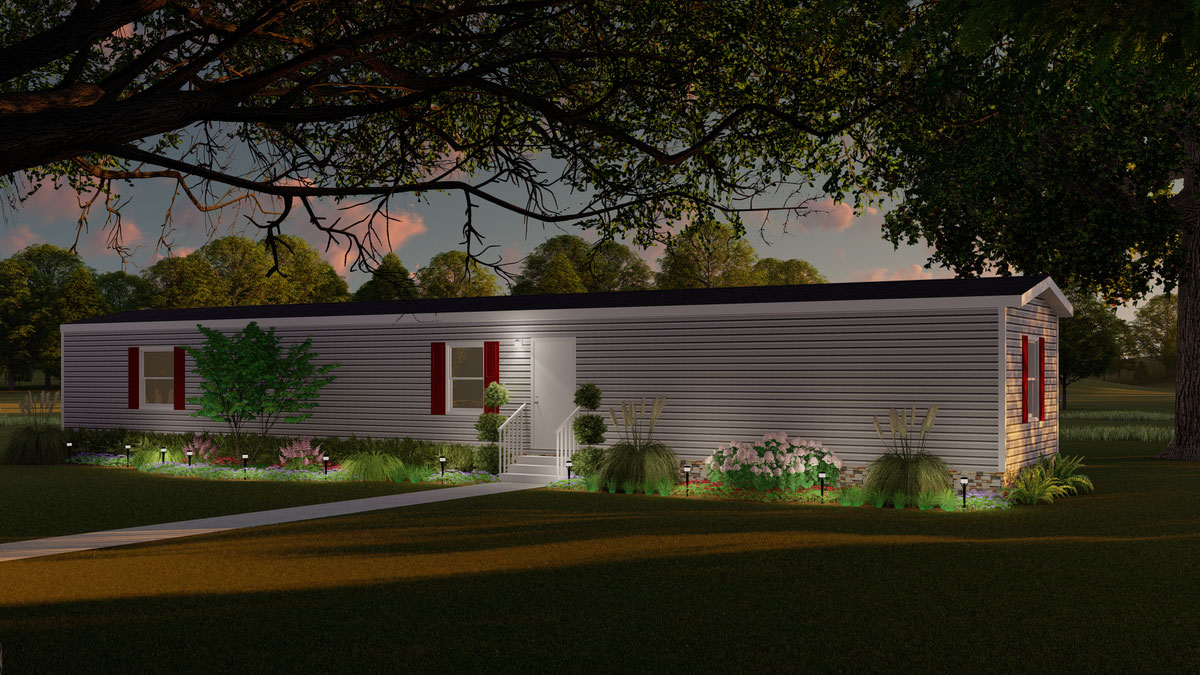

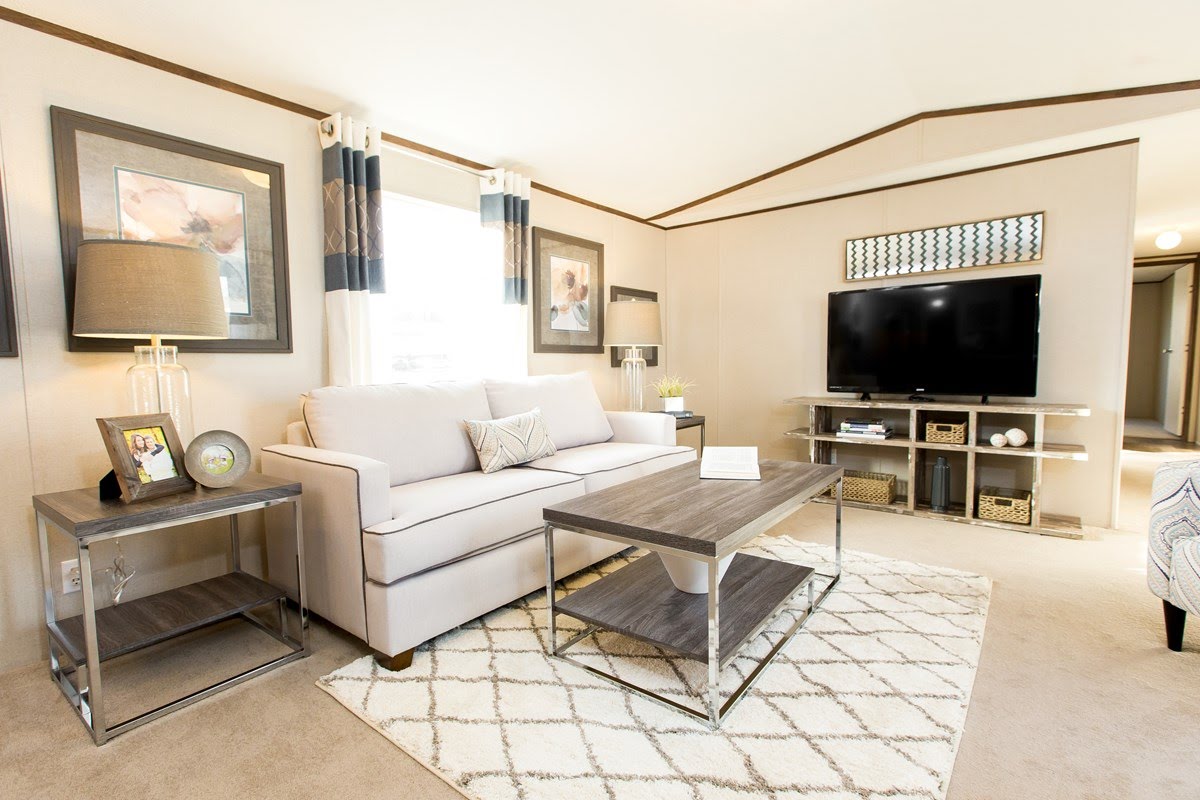

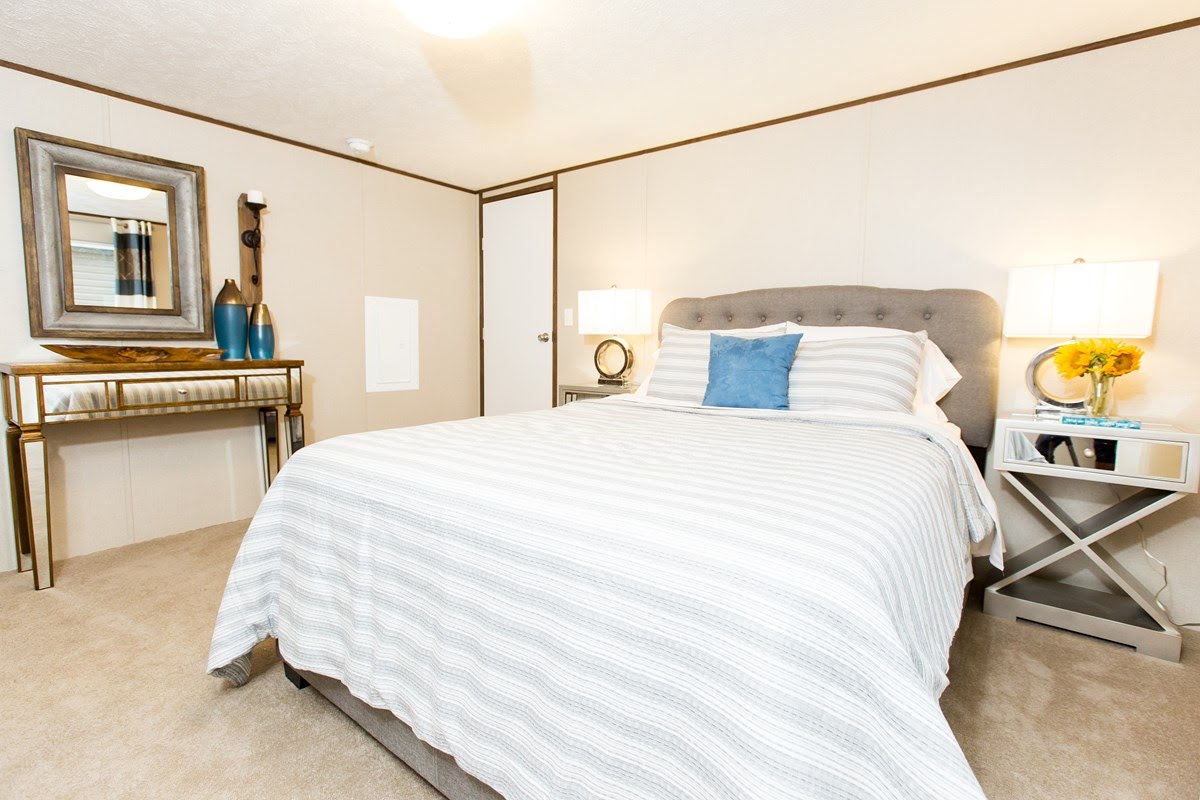

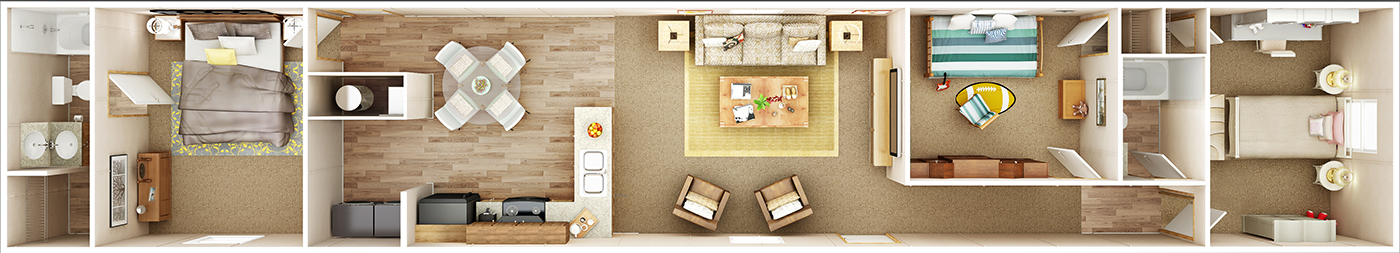

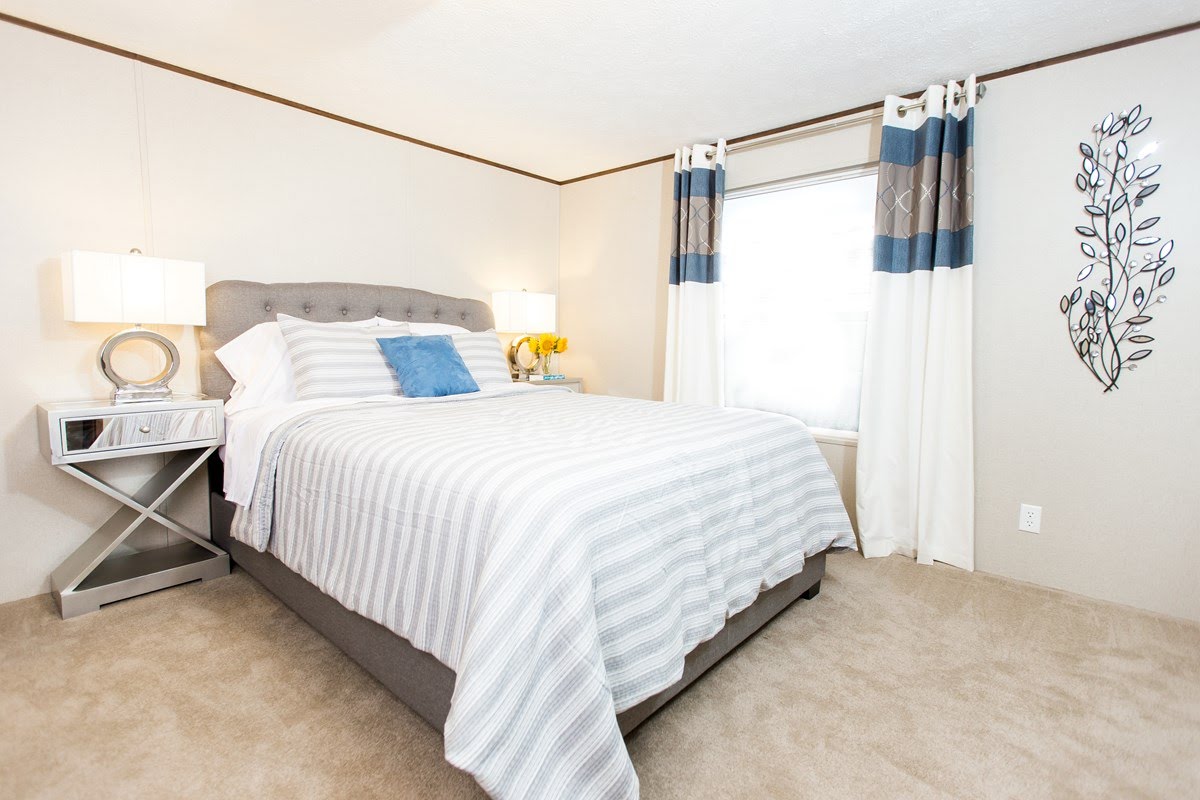

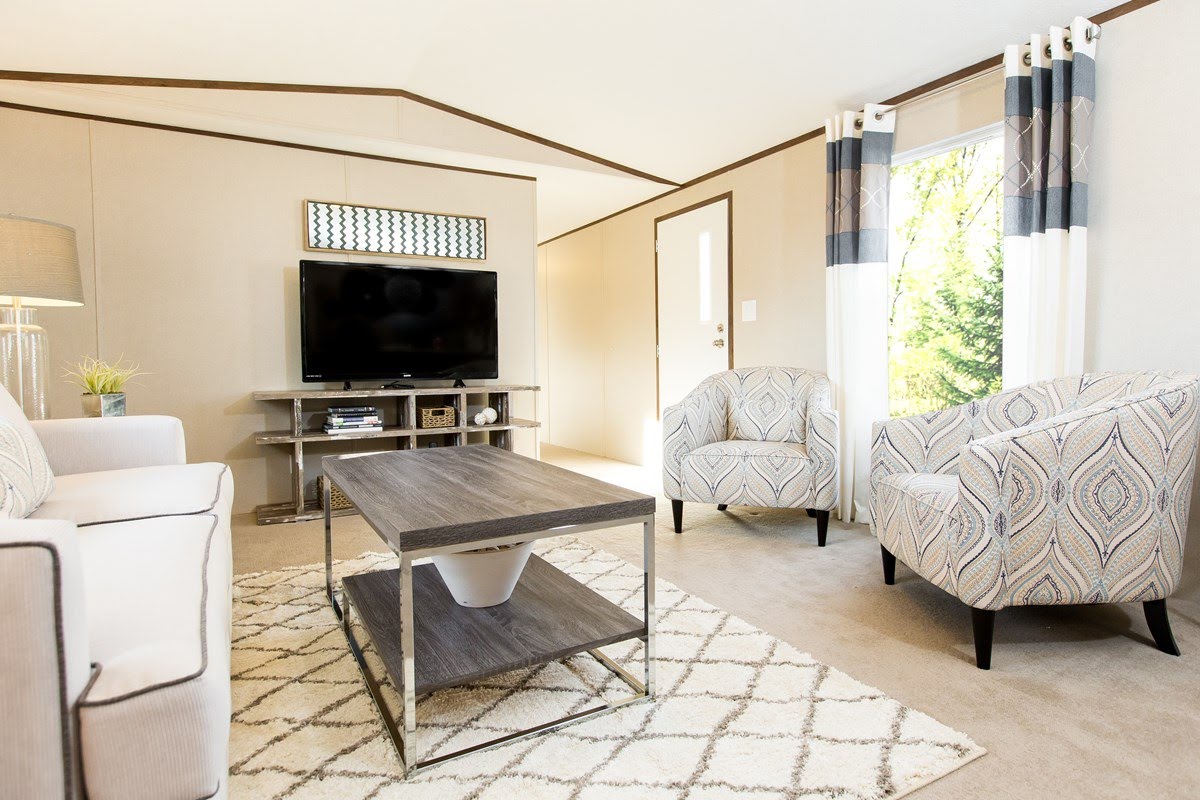

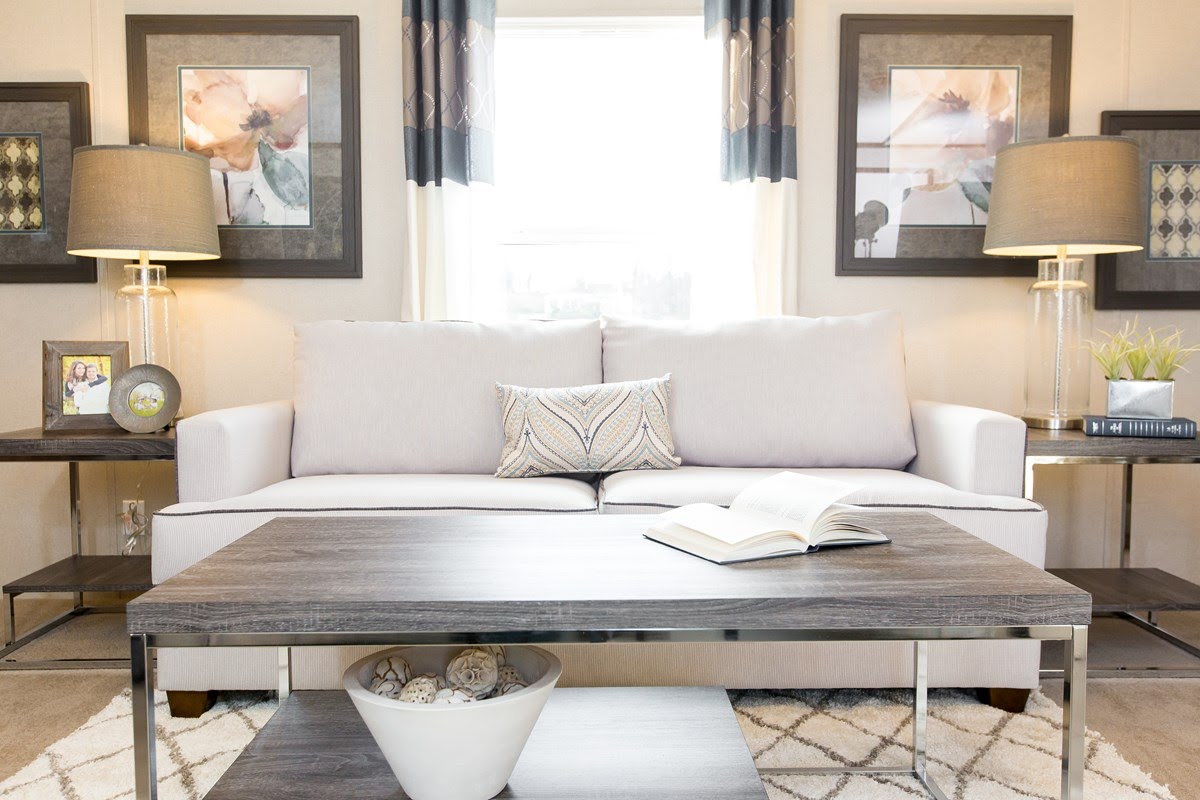

Glory TRU14763BH Efficiently designed affordable home with vaulted ceiling in spacious living room and modern kitchen. Master bedroom and en suite bath privately located away from guest bedrooms and bath.

manufactured homes, modular homes, mobile homes, oilfield houses, workforce housing, Tiny homes, New Homes

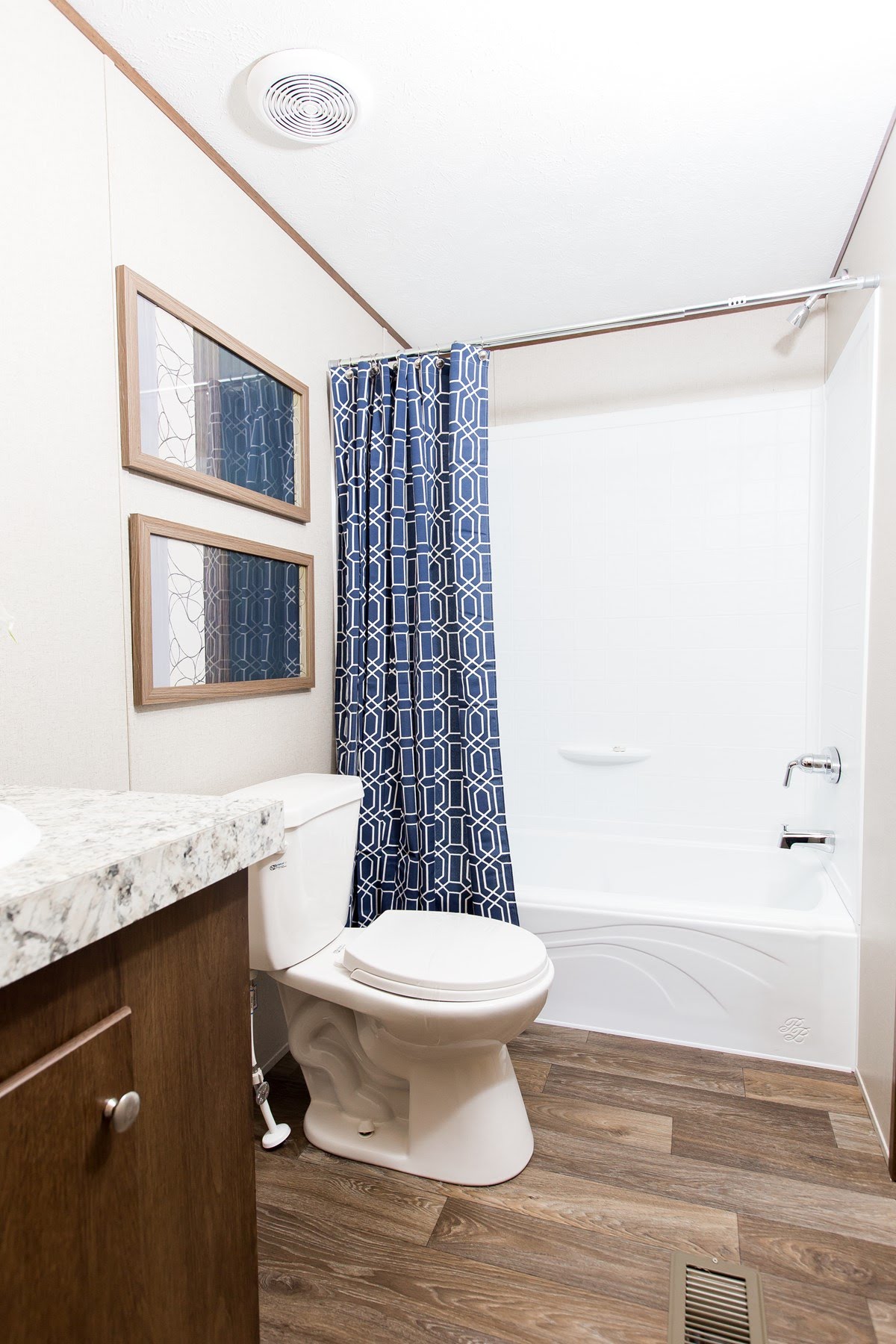

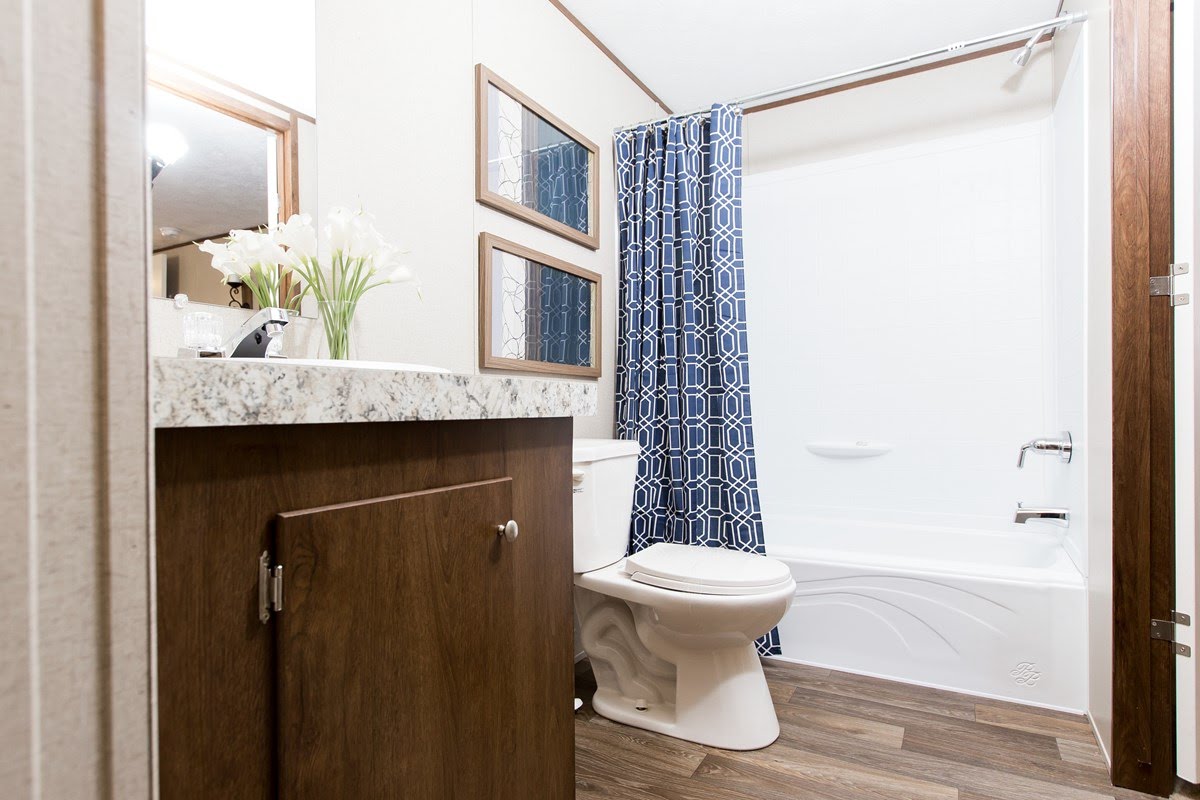

Bathroom Bathtubs: 54 ABS Plastic Tub

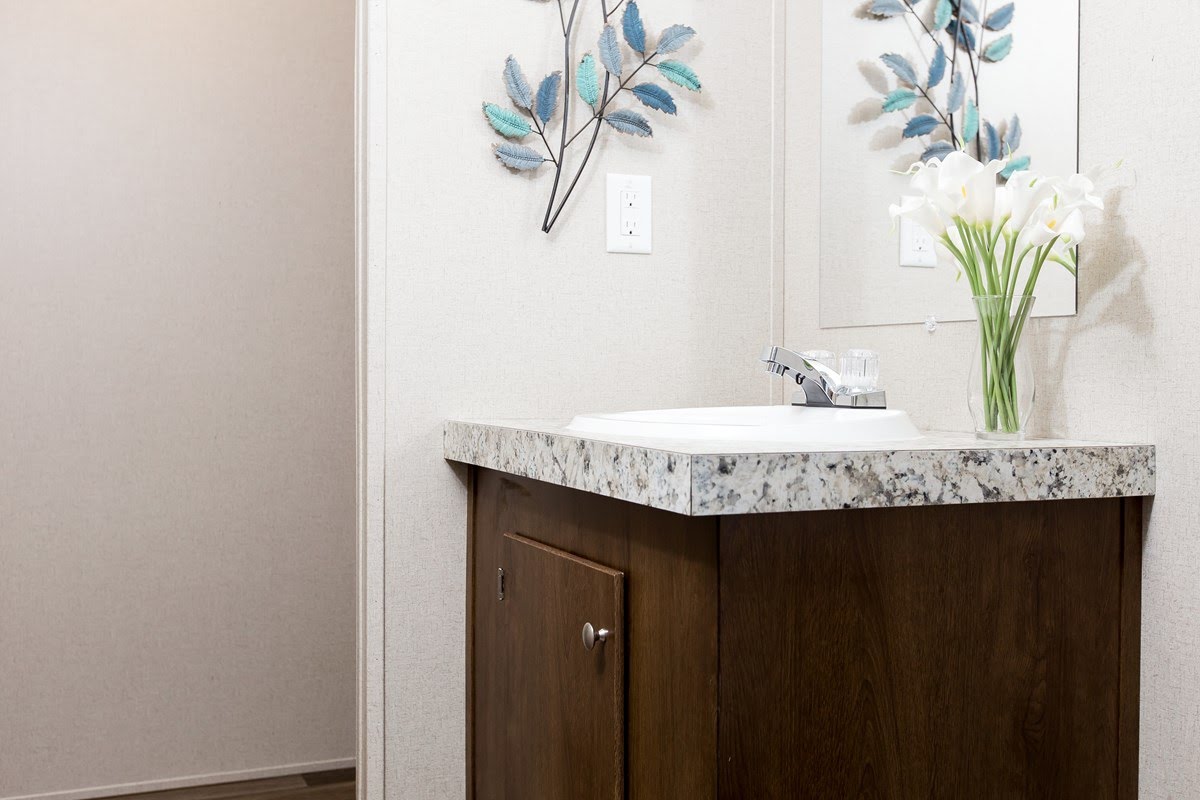

Bathroom Cabinets: MDF
Bathroom Countertops: Formica
Bathroom Faucets: Plastic
Bathroom Flooring: Vinyl
Bathroom Sink: Plastic

Ac Ready: Conduit
Insulation (Ceiling): Zone I: R-11 / Zone II: R-14 / Zone III: R-28
Exterior Wall On Center: 16” O.C. spacing
Exterior Wall Studs: 2×4 (option 2×6 Sidewalls w/R-19)
Floor Decking: 19/32” 4×8 OSB T&G
Insulation (Floors): Zone I: R-11 / Zone II: R-14 / Zone III: R-22
Floor Joists: 2×6 / 19.2” O.C.
Interior Wall On Center: 24” O.C
Interior Wall Studs: 2×3
Roof Load: 20 lb. Roof Load Std., 30 psf optional (optional 30# roof load 16” O.C. Trusses)
Roof Truss: 24” O.C. spacing
Side Wall Height: 7’-0”
Insulation (Walls): Zone I: R-11 / Zone II: R-11 / Zone III: R-11

Front Door: Out swing 34” x 76” blank, no storm
Rear Door: swing 34” x 76” blank, no storm
Shingles: 20 year
Siding: Standard Vinyl Siding
Window Type: Metal single glaze, size per prints / Thermal Pane Low E Vinyl Windows (available for Thermal Zone 3 only)

Carpet Grade: Factory Select – Carpet Pad: 3.5 lb. (minimum) Rebond Pad
Ceiling Texture: Textured
Interior Doors: Factory Select
Vaulted Ceilings: Vault/Flat Ceiling
Window Treatment: Valance on LR windows only. No mini blinds
Window Type: Metal single glaze, size per prints / Thermal Pane Low E Vinyl Windows (available for Thermal Zone 3 only)

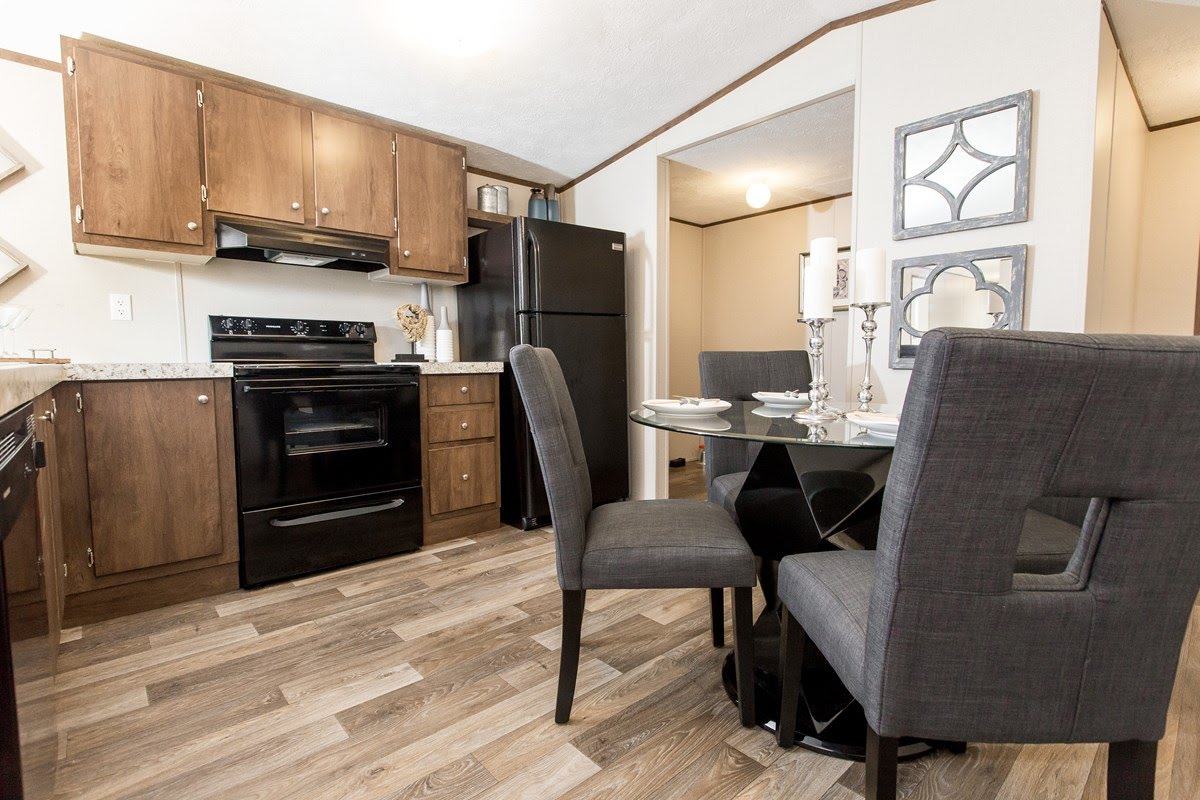

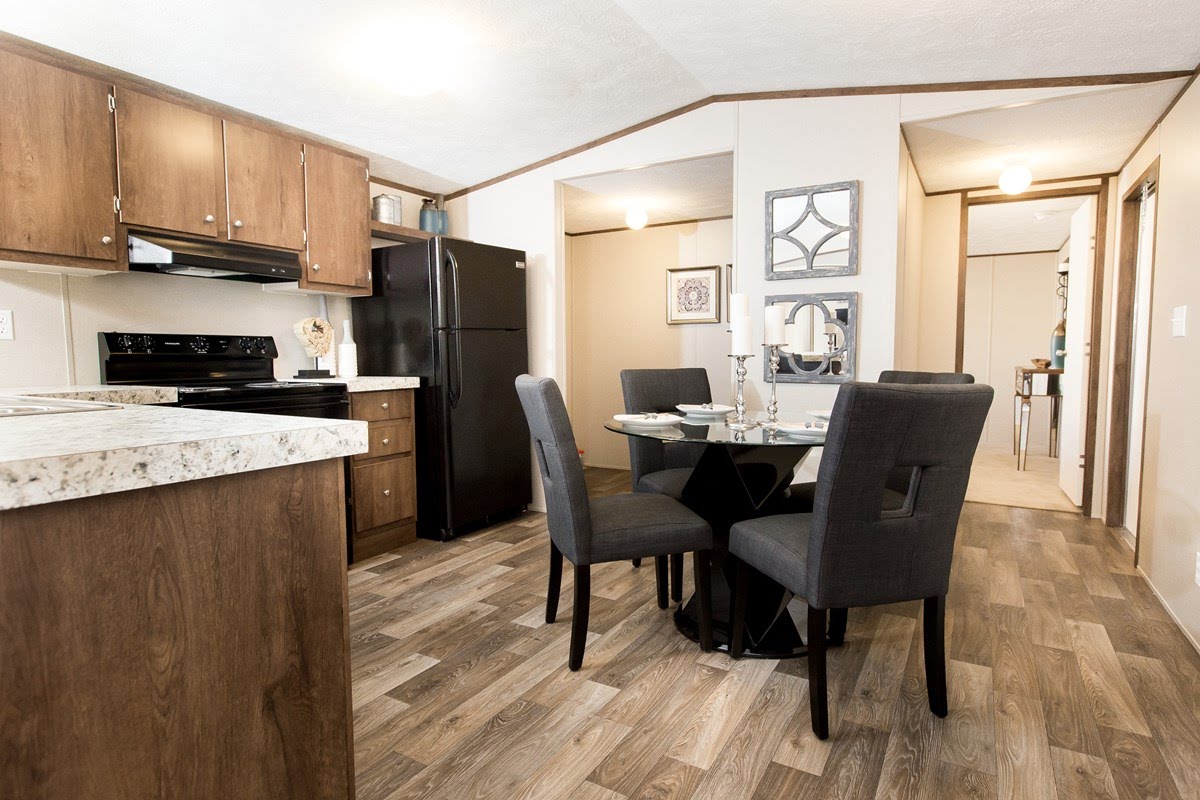

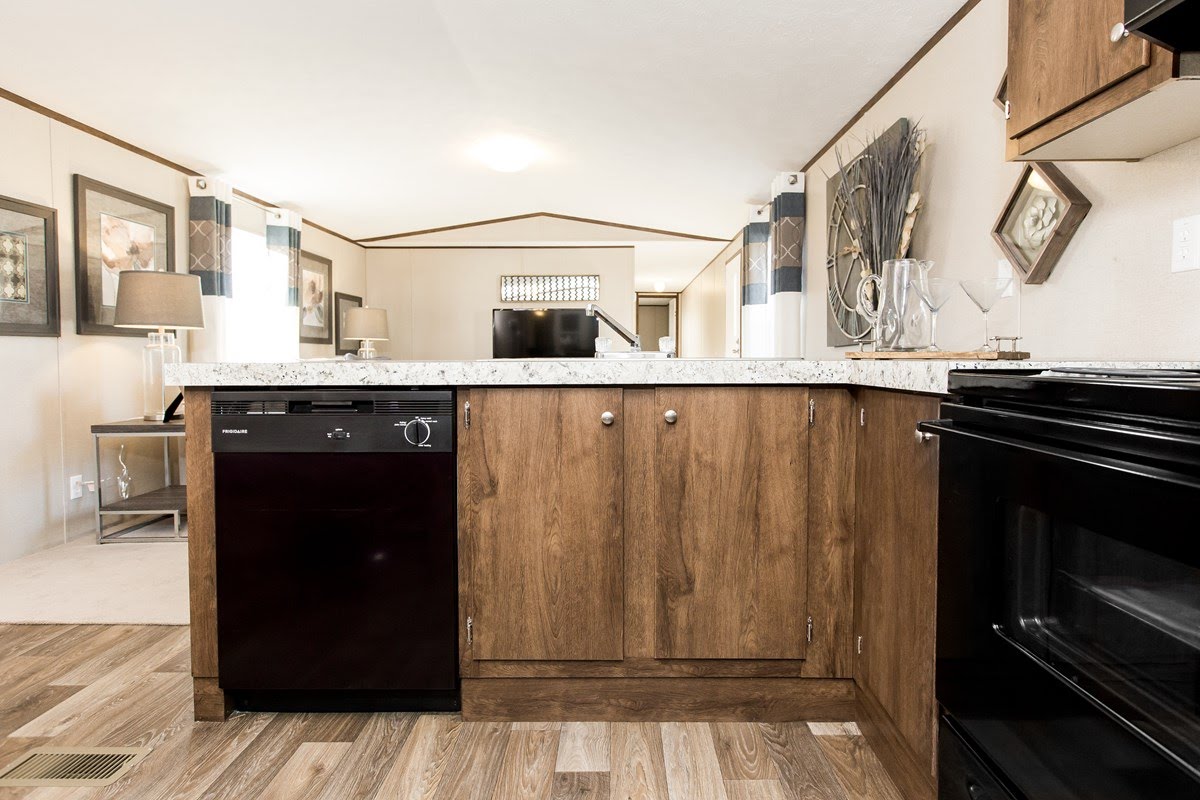

Kitchen Cabinetry: MDF
Kitchen Countertops: Formica
Kitchen Dishwasher: Optional
Kitchen Faucets: Plastic
Kitchen Flooring: Vinyl
Kitchen Range Hood: 30”, 100 cfm min, vent through sidewall
Kitchen Range Type: Electric
Kitchen Refrigerator: 18 CF
Kitchen Sink: Stainless Steel, dbl bowl

Electrical Service: 200 amp (100 amp allowed when gas option ordered – gas range and gas furnace)
Furnace: Electric (gas optional)
Thermostat: 8 Wire
Water Heater: 30 gallon electric
Water Shut Off Valves: Main Water Shut Off
